Handheld, Portable, & Battery Operated

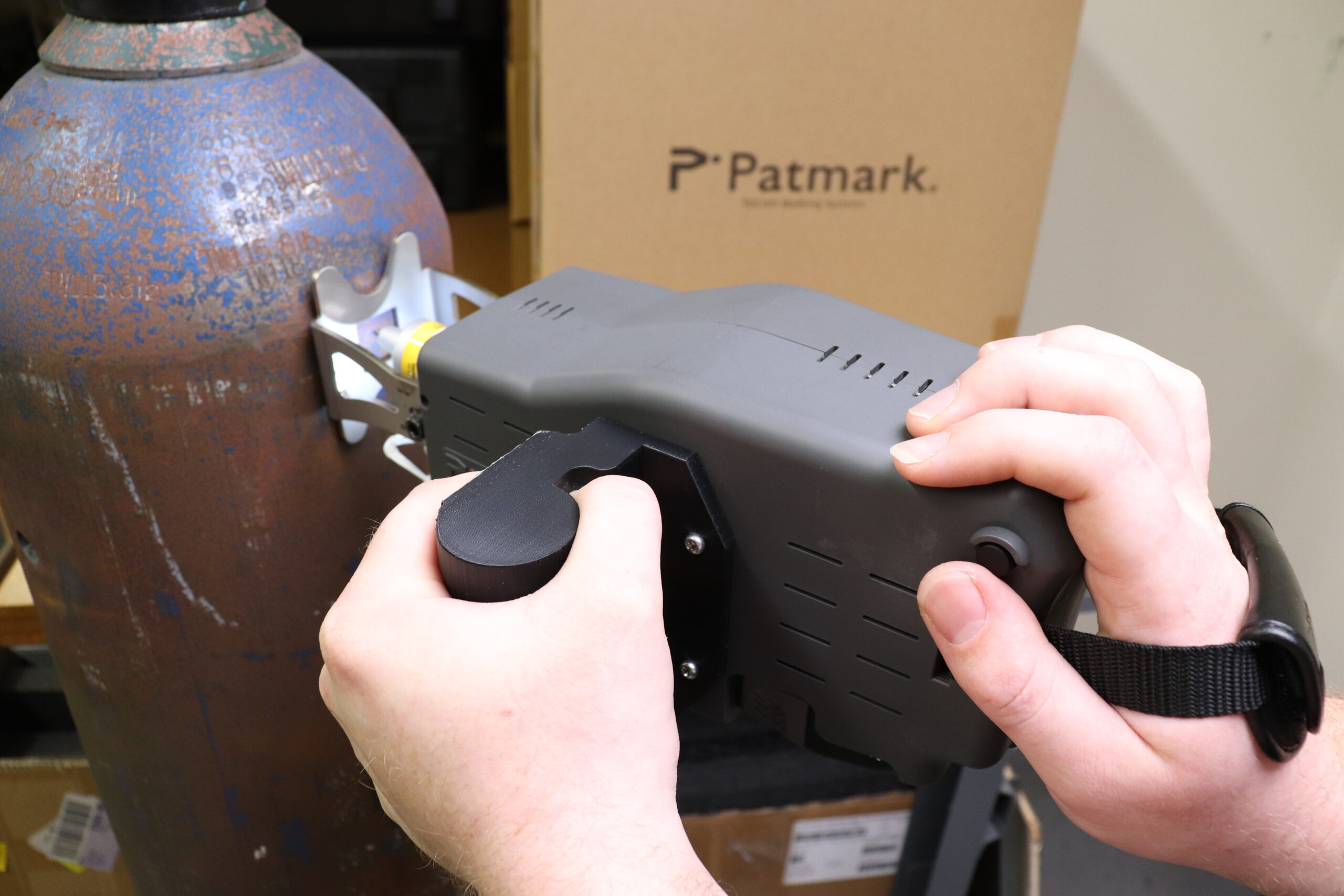

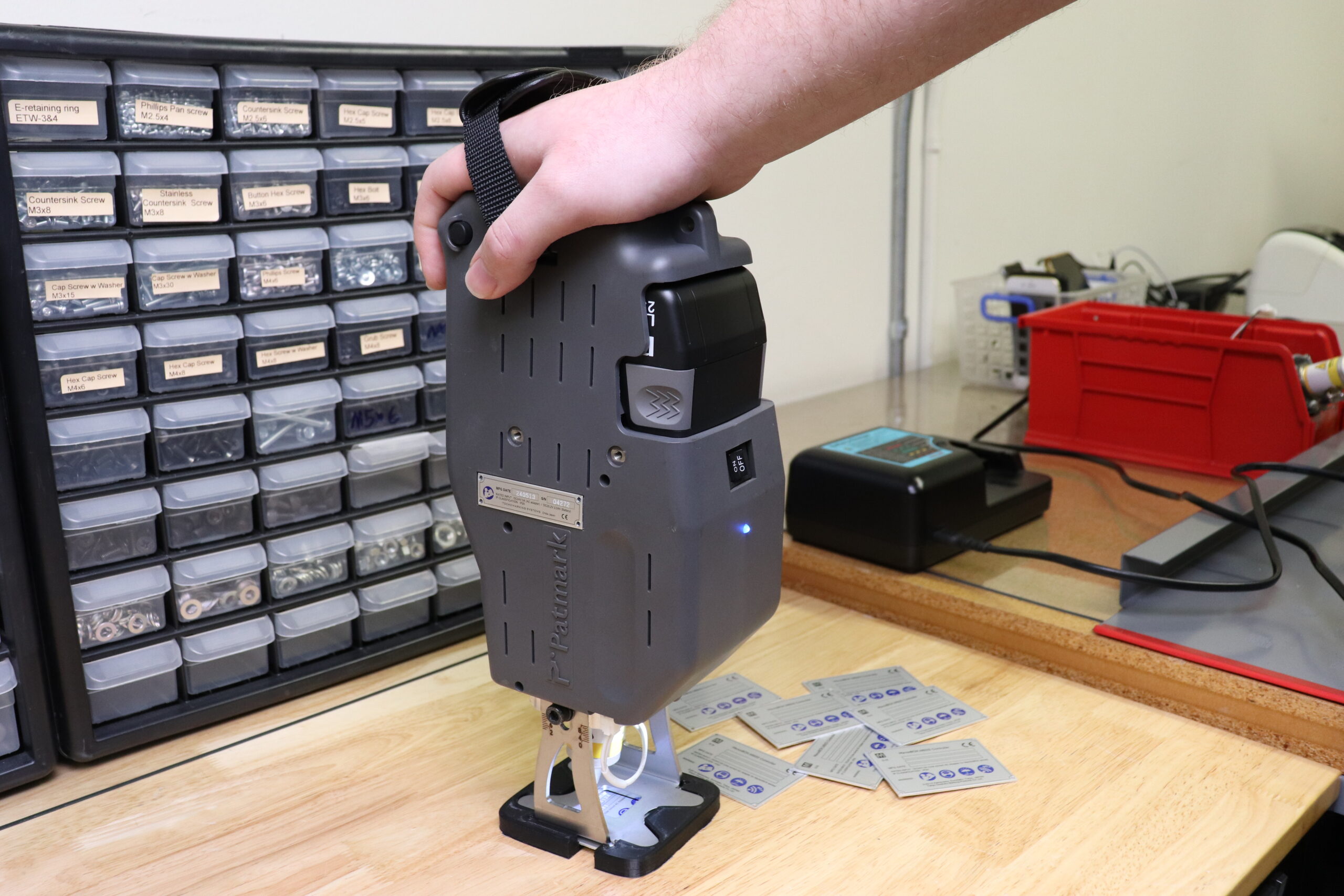

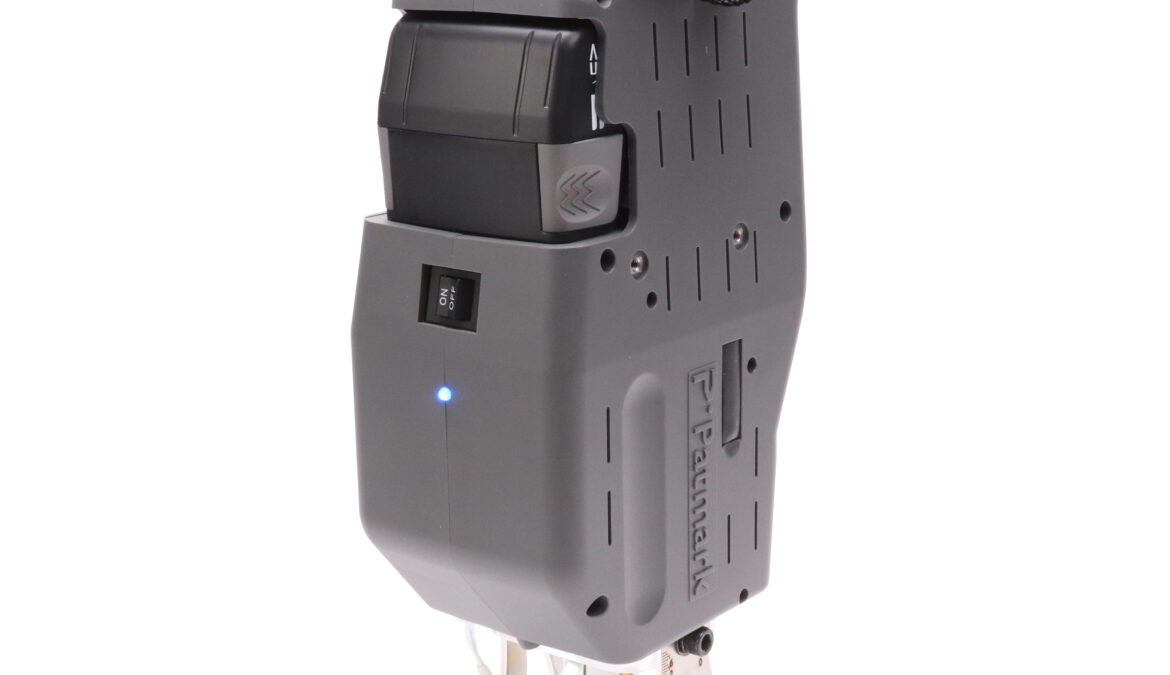

The Patmark-mini-S is a portable, battery operated, dot pin marker. It can mark on everything from plastics to hardened metals up to 62 RC. With easy-to-use Windows Based Software, as well as App Based Software compatible with Android and iOS, you can get a clean and clear mark as small as 1mm, every time.
Applications Include:
- Part Marking
- Numbering
- Serializing
- Time & Date Stamp
- Logos
- 2D Data Matrix, and QR Codes
Specifications
| Marking Window | 15x15mm(0.6×0.6″) | |
| Power Supply | Lithium-ion battery | 25.2V, 2.0Ah |
| Battery charger | Input: AC100V-240V, 50/60Hz | |
| Weight with Battery | 2.3kg(4.4lbs) | |
| Vibration Value | 2.5m/s2 or less | |
| Software | App | Wi-Fi |
| Windows software | Wi-Fi, USB | |
| Markable Materials | Metal (up to about HRC62), plastic and wood | |
