Deep Pin Marking, Convenient Size
Available in portable, bench top, and integrated configurations, the MB8020S BSD is your Deep Pin Marking Solution from MarkinBOX. With a marking area of 80mm X 20mm, the MB8020S BSD is a turnkey solution for marking a variety of parts across industries from automotive and aerospace to medical and marine.
The MB8020S BSD is ergonomically designed for operator comfort and easy to incorporate into your manufacturing process. The graphic interface of the computer software is user-friendly, helping you achieve the mark you want quickly.
The MB8020S BSD is equipped with a 5mm diameter carbide pin and a larger solenoid that allows your marks to be deeper and wider. Great for when your parts have to be painted, powder coated, or just about any other post process finish.
Applications Include:
- Part Marking
- Serializing
- Numbering
- Time & Date Stamp
- Logos
- 2D Data Matrix and QR Codes
Specifications:
| Marking Area | 80mm X 20mm |
| Character Height | 1- 20mm (0.1mm Pitch) |
| Character Width | Height x 10% ~ 200% |
| Number of Lines | Up to 20 Lines of Text |
| Character Pitch | .04″ (1mm) (0.1mm Pitch) |
| Electrical Power | 120 VAC, 60Hz |
| Approvals | UL and CE on Adapter |
| I.O. | Input 12 / Output 8 Point |
| Communication Port | USB / RS232C / LAN / DIO |
| Marking Technology | Big Solenoid Drive |
| Marking Head Dimensions | 168mm X 79.5mm X 213mm |
| Controller Dimensions | 66mm X 144mm X 220mm (w/ stand) |
| Marking Head Weight | 4.6 lbs. including 3m cable |
| Controller Weight | 3.1 lbs. |

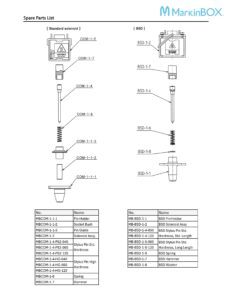

Spec Sheet :
(click image to download .PDF)
